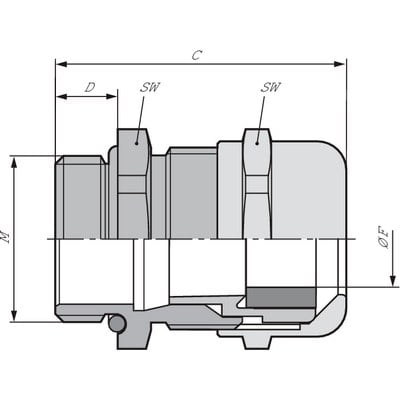

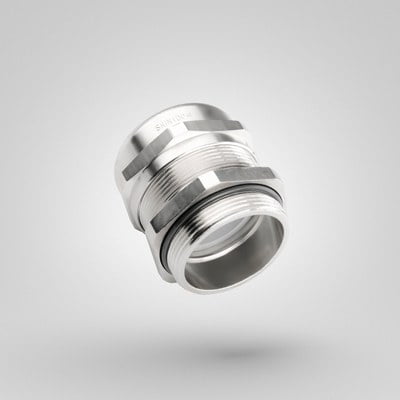

SKINTOP® MS-M, brass cable gland for cable diameters up to 98mm, in areas where mechanical and chemical stability are critical
כניסות M (מלימטרי) פליז מצופה ניקל
| Part No | Product | Thread Size | Clamping Range | Pieces / PU | Price (₪) | Stock | Gland Body Material | Thread Type | Gland Color | IP RATING | UV Resistant | UL Cert | Naval Approval | Installation Temp | Fixed Installation Temp | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 53112000 | SKINTOP MS-M 12x1,5 | M 12 x 1.5 | 7<-3.5 | 100 | 626.00₪ | In Stock | Nickel Plated Brass | Metric | Nickel | 69, IP 68 - 10 BAR, NEMA Type 1, 4x, 6, 12 | Yes | Yes | Yes | 100- (25) | 100- (40) |
 | בחירת כמות |
|
| 53112010 | SKINTOP MS-M 16x1,5 | M 16 x 1.5 | 10<-4.5 | 100 | 1022.00₪ | In Stock | Nickel Plated Brass | Metric | Nickel | 69, IP 68 - 10 BAR, NEMA Type 1, 4x, 6, 12 | Yes | Yes | Yes | 100- (25) | 100- (40) |
| בחירת כמות |
|
| 53112020 | SKINTOP MS-M 20x1,5 | M 20 x 1.5 | 13<-7 | 50 | 595.00₪ | In Stock | Nickel Plated Brass | Metric | Nickel | 69, IP 68 - 10 BAR, NEMA Type 1, 4x, 6, 12 | Yes | Yes | Yes | 100- (25) | 100- (40) |
| בחירת כמות |
|
| 53112030 | SKINTOP MS-M 25x1,5 | M 25 x 1.5 | 17<-9 | 25 | 373.50₪ | In Stock | Nickel Plated Brass | Metric | Nickel | 69, IP 68 - 10 BAR, NEMA Type 1, 4x, 6, 12 | Yes | Yes | Yes | 100- (25) | 100- (40) |
| בחירת כמות |
|
| 53112040 | SKINTOP MS-M 32x1,5 | M 32 x 1.5 | 21<-11 | 25 | 696.00₪ | In Stock | Nickel Plated Brass | Metric | Nickel | 69, IP 68 - 10 BAR, NEMA Type 1, 4x, 6, 12 | Yes | Yes | Yes | 100- (25) | 100- (40) |
| בחירת כמות |
|
| 53112050 | SKINTOP MS-M 40x1,5 | M 40 x 1.5 | 28<-19 | 10 | 455.20₪ | In Stock | Nickel Plated Brass | Metric | Nickel | 69, IP 68 - 10 BAR, NEMA Type 1, 4x, 6, 12 | Yes | Yes | Yes | 100- (25) | 100- (40) |
| בחירת כמות |
|
| 53112060 | SKINTOP MS-M 50x1,5 | M 50 x 1.5 | 35<-27 | 5 יח' | 294.10₪ | In Stock | Nickel Plated Brass | Metric | Nickel | 69, IP 68 - 10 BAR, NEMA Type 1, 4x, 6, 12 | Yes | Yes | Yes | 100- (25) | 100- (40) |
| בחירת כמות |
|
| 53112083 | SKINTOP MS-M 40x1,5 PLUS | M 40 X 1.5 PLUS | 35<-27 | 5 יח' | 534.00₪ | In Stock | Nickel Plated Brass | Metric | Nickel | 69, IP 68 - 10 BAR, NEMA Type 1, 4x, 6, 12 | Yes | Yes | Yes | 100- (25) | 100- (40) |
| בחירת כמות |
|
| 53112070 | SKINTOP MS-M 63x1,5 | M 63 x 1.5 | 45<-34 | 5 יח' | 654.10₪ | In Stock | Nickel Plated Brass | Metric | Nickel | 69, IP 68 - 10 BAR, NEMA Type 1, 4x, 6, 12 | Yes | Yes | Yes | 100- (25) | 100- (40) |
| בחירת כמות |
|
| 53112080 | SKINTOP MS-M 63x1,5 PLUS | M 63 X 1.5 PLUS | 55<-44 | 5 יח' | 943.10₪ | In Stock | Nickel Plated Brass | Metric | Nickel | 69, IP 68 - 10 BAR, NEMA Type 1, 4x, 6, 12 | Yes | Yes | Yes | 100- (25) | 100- (40) |
| בחירת כמות |
|
| 53112510 | SKINTOP MS-M 75x1,5 | M 75 x 1.5 | 68<-58 | 1 | 565.36₪ | In Stock | Nickel Plated Brass | Metric | Nickel | 69, IP 68 - 10 BAR, NEMA Type 1, 4x, 6, 12 | Yes | Yes | Yes | 100- (25) | 100- (40) |
| בחירת כמות |
|
| 53112512 | SKINTOP MS-M90X2 | M 90 x 2 | 78<-66 | 1 | 1233.34₪ | In Stock | Nickel Plated Brass | Metric | Nickel | 69, IP 68 - 10 BAR, NEMA Type 1, 4x, 6, 12 | Yes | Yes | Yes | 100- (25) | 100- (40) |
| בחירת כמות |
|
| 53112514 | SKINTOP MS-M110X2 | M 110 x 2 | 98<-86 | 1 | 2631.76₪ | כשבועיים | Nickel Plated Brass | Metric | Nickel | 69, IP 68 - 10 BAR, NEMA Type 1, 4x, 6, 12 | Yes | Yes | Yes | 100- (25) | 100- (40) |
| בחירת כמות |
